Analogue Portable X-ray Machine for Veterinary

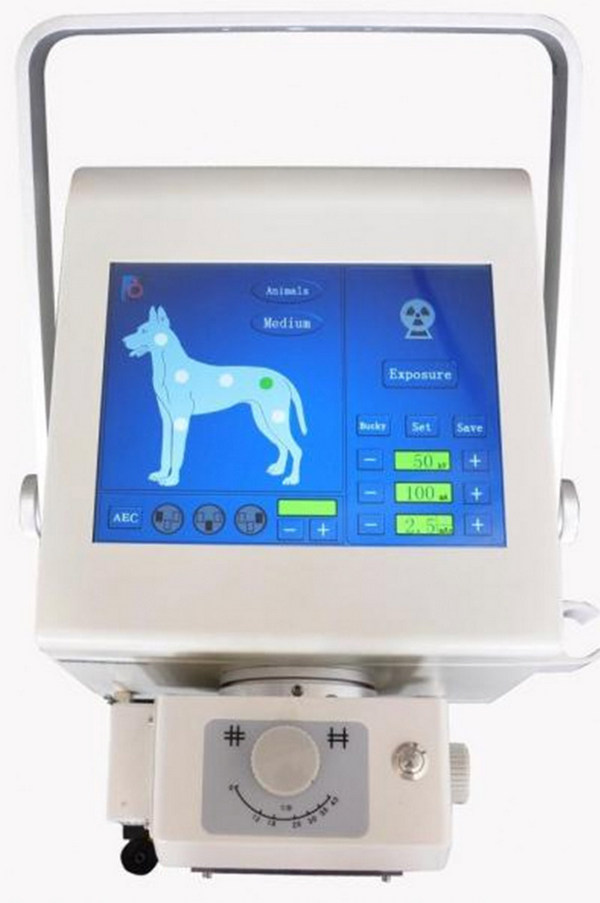

AX100 Portable X-ray Machine for Veterinary (Analogue), 10.4-inch touch screen. It can be widely used for equine/large animal, Companion, exotic, and mixed animal practices is easy to use, ultra-durable, and create digital images of superior quality.
Product Description
Features
1.6 periods of digital LED display
2.Failure self-protection, self-diagnosis
3.High precision control of tube voltage, tube current
4.48 kinds of presupposed anatomy memory pattern choice
5.The accuracy control method of simulation and double digital loops
6.X-ray tube complete surrender by lead for protecting X-ray leaking
7.Exposure by hand switch
8.Exposure by remote control
9.Exposure by touch screen
Technical Specifications
| Main Component | ||
| Voltage | AC220V ± 22V | |
| Generator | Power | 5kW |
| kV Range | 40~110kV | |
| mA Range | 20~100mA | |
| mAs Range | 0.2-200mAs | |
| Working Frequency | ≥40kHz | |
| Exposure time | 0.01S~4S | |
| X-ray tube | Anode heat storage | 56KHU |
| Focus | 1.8mm | |
| Inherent filtration | 1mm Al/75Kv | |
| Light source | LED | |
| Touch Screen | Dimension | 10.4inch |
| Physical Spe. | ||
| Main Unit | Weight | 19 kg |
| Dimension | 290×265×230 mm | |
