3-part Hematology Analyzer for Animals

Features:
• 3-part differentiation of WBC; 20 parameters+3 histograms
• 2 Counting mode: whole blood and prediluted
• Throughput: 60 samples per hour
• Closed tube sampling optional
• Up to 50000 sample results (including histograms) can be stored
• Built-in thermal recorder, optional external printer
• 10.4” TFT color LCD with touch screen

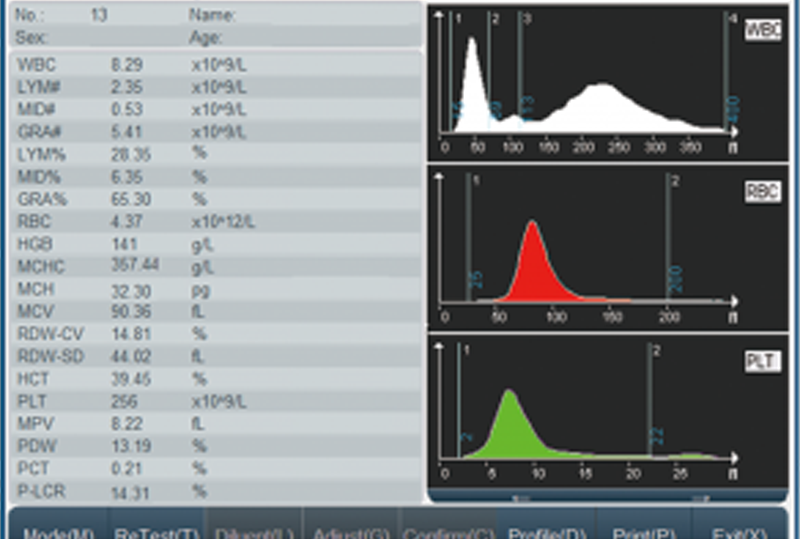

Parameters
WBC, LYM#, MON#, GRA#, LYM%, MON%, GRA%, RBC, HGB, MCHC, MCH, MCV,
RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR and Histograms for WBC,
RBC and PLT

Principles
Electrical resistance for counting WBC, RBC and PLT

Performance
Parameter Precision (CV %)
– WBC (109/L) 2.0(7.0-15.0)
– RBC (1012/L) 1.5(3.50-6.00)
– HGB (g/L) 1.5(110-180)
– MCV (fL) 0.4(80.0-110.0)
– PLT (109/L) 4(100-500)

Sample Volume
Prediluted: 20µL
Whole Blood: 9.8µL

Aperture Diameter
WBC 80µm RBC 50µm

Throughput: 60 samples per hour
Display: 10.4’’ Large Color LCD with touch screen
Screen Resolution: 800×600
Alarms: Error messages

Carryover
WBC/RBC/HGB<0.5%,PLT<1.0%

Input/Output
RS-232, USB, LAN, keyboard and mouse interface

Printout
Thermal recorder, 55mm width paper, various printout formats, external printer(optional)

Operating Environment
Temperature: 15℃~35℃
Humidity: 10%~90%

Power requirement: AC 100-240V, 50/60±1Hz
Dimension L×W×H（mm）:436×363×367
Net weight: 18Kg
